Panasonic Electronic Components
CAP ALUM POLY 120UF 20% 50V SMD

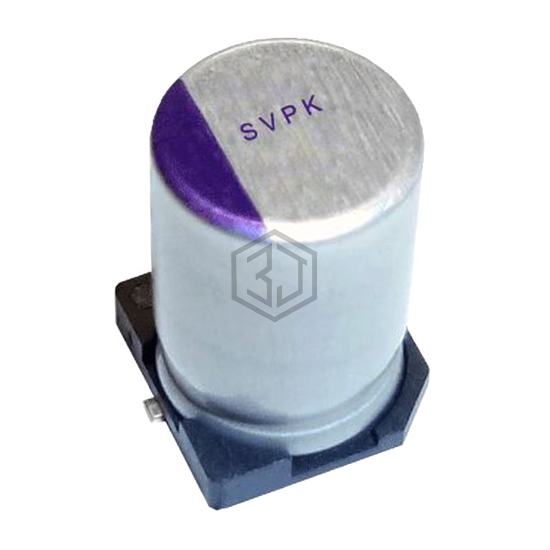

50SVPK120M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 120UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 2,566
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 67.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.35 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A768MS127M1HLAE024 | KEMET | CAP ALUM POLY 120UF 20% 50V SMD | 78% | View |
| A768MS127M1HLAV024 | KEMET | CAP ALUM POLY 120UF 20% 50V SMD | 78% | View |
| PCR1H121MCL2GS | Nichicon | CAP ALUM POLY 120UF 20% 50V SMD | 75% | View |
| PCR1H121MCL1GS | Nichicon | CAP ALUM POLY 120UF 20% 50V SMD | 74% | View |
| 25SVPK120M | Panasonic Electronic Components | CAP ALUM POLY 120UF 20% 25V SMD | 65% | View |
| PCX1D121MCL1GS | Nichicon | CAP ALUM POLY 120UF 20% 20V SMD | 62% | View |
