Panasonic Electronic Components

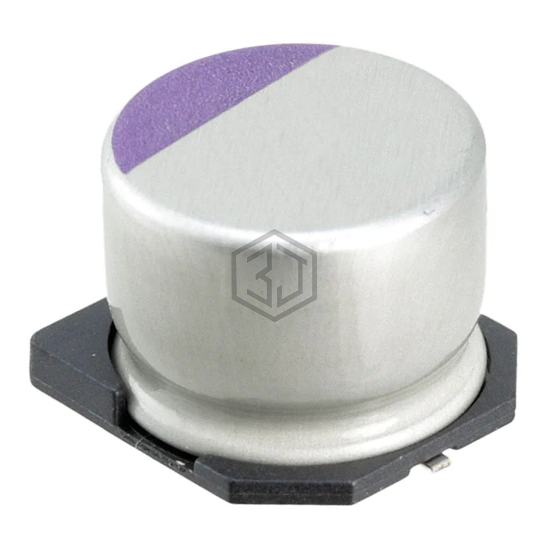

CAP ALUM POLY 680UF 20% 4V SMD
4SVP680M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 680UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 8,854
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 185 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218197706E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 680UF 20% 4V SMD | 96% | View |
| 2R5SVT680MX | Panasonic Electronic Components | CAP ALUM POLY 680UF 20% 2.5V SMD | 83% | View |
| 2R5SVT680M | Panasonic Electronic Components | CAP ALUM POLY 680UF 20% 2.5V SMD | 81% | View |
| 875115152007 | Würth Elektronik | CAP ALUM POLY 680UF 20% 6.3V SMD | 74% | View |
| APXJ2R5ARA821MFA0G | United Chemi-Con | CAP ALUM POLY 820UF 20% 2.5V SMD | 71% | View |
| PCR1D681MCL1GS | Nichicon | CAP ALUM POLY 680UF 20% 20V SMD | 67% | View |
Submit your RFQ for 4SVP680M and get a quote within 24 hours.
