Panasonic Electronic Components

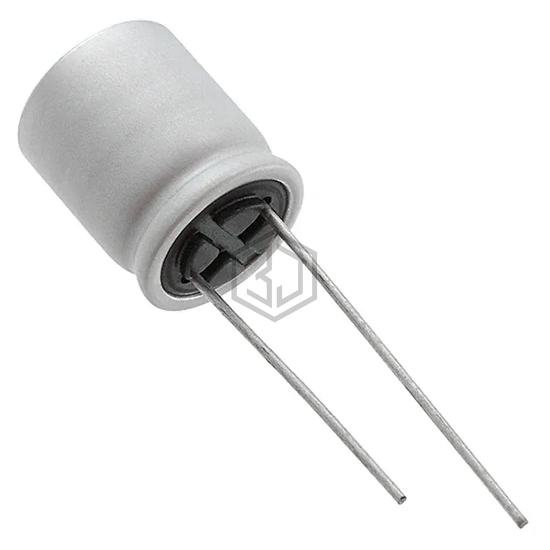

CAP ALUM POLY 1200UF 20% 4V T/H
4SEP1200M+T is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 1200UF 20% 4V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can.
In Stock: 6,872
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 12mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 272 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.44 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLG0G122MCO1 | Nichicon | CAP ALUM POLY 1200UF 20% 4V T/H | 97% | View |
| RNU0G122MDN1 | Nichicon | CAP ALUM POLY 1200UF 20% 4V T/H | 81% | View |
| PLG0J122MDO1TD | Nichicon | CAP ALUM POLY 1200UF 6.3V T/H | 78% | View |
| 870135175007 | Würth Elektronik | CAP ALUM POLY 1200UF 6.3V T/H | 77% | View |
| RR50G122MDN1 | Nichicon | CAP ALUM POLY 1200UF 20% 4V T/H | 70% | View |
| RNE0J122MDN1 | Nichicon | CAP ALUM POLY 1200UF 6.3V T/H | 67% | View |
Submit your RFQ for 4SEP1200M+T and get a quote within 24 hours.
