Panasonic Electronic Components

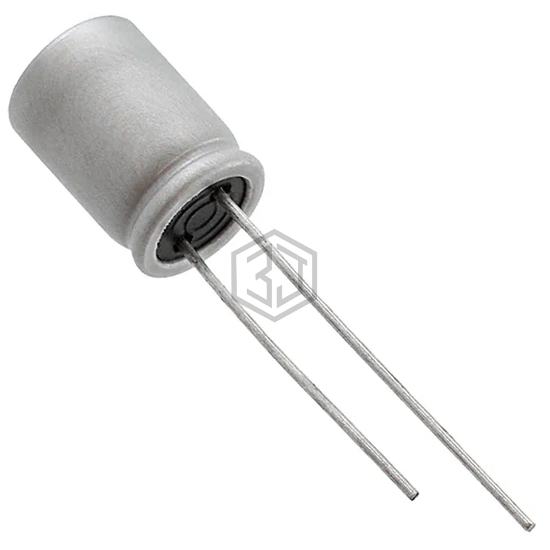

CAP ALUM POLY 82UF 20% 35V T/H
35SEPF82M+TSS is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 82UF 20% 35V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,589
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 870025574004 | Würth Elektronik | CAP ALUM POLY 82UF 20% 25V T/H | 84% | View |
| PLV1V820MDL1TD | Nichicon | CAP ALUM POLY 82UF 20% 35V T/H | 82% | View |
| UPE1E820MP26308 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 75% | View |
| RS81E820MCN1 | Nichicon | CAP ALUM POLY 82UF 20% 25V TH | 73% | View |
| A759MS826M1JAAE050 | KEMET | CAP ALUM POLY 82UF 20% 63V T/H | 60% | View |
| 826AVG063MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 82UF 20% 63V T/H | 51% | View |
Submit your RFQ for 35SEPF82M+TSS and get a quote within 24 hours.
