Panasonic Electronic Components

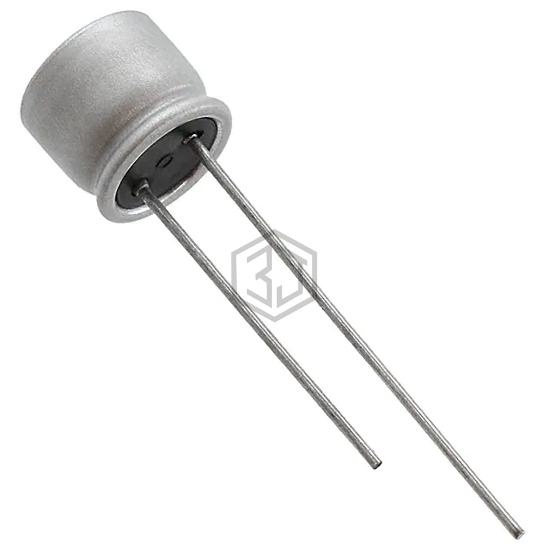

CAP ALUM POLY 68UF 20% 32V T/H
32SEPF68M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 68UF 20% 32V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 32 V, package / case Radial, Can.
In Stock: 1,180
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 32 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLF1D680MCL2TD | Nichicon | CAP ALUM POLY 68UF 20% 20V T/H | 74% | View |
| 20SEP68M | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 20V T/H | 72% | View |
| 686AVG050MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 68UF 20% 50V T/H | 70% | View |
| PLF1A680MDL4 | Nichicon | CAP ALUM POLY 68UF 20% 10V T/H | 68% | View |
| RNS1D680MDN1PX | Nichicon | CAP ALUM POLY 68UF 20% 20V T/H | 63% | View |
| RNS1A680MDS1PX | Nichicon | CAP ALUM POLY 68UF 20% 10V T/H | 62% | View |
Submit your RFQ for 32SEPF68M and get a quote within 24 hours.
