Panasonic Electronic Components
CAP ALUM POLY 22UF 20% 32V T/H

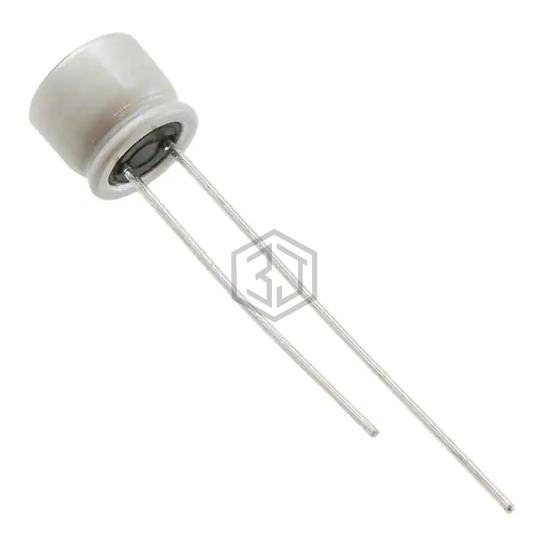

32SEPF22M+TSS is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 22UF 20% 32V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 32 V, package / case Radial, Can.
In Stock: 7,295
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 32 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPE1V220MNN6305 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 94% | View |
| 25SEP22M+T | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 25V T/H | 84% | View |
| PLF1E220MCL7 | Nichicon | CAP ALUM POLY 22UF 20% 25V T/H | 80% | View |
| A759MS226M2AAAE045 | KEMET | CAP ALUM POLY 22UF 20% 100V T/H | 77% | View |
| 100SXE22M | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 100V T/H | 68% | View |
| 20SEP22M+TSS | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 20V T/H | 62% | View |
Submit your RFQ for 32SEPF22M+TSS and get a quote within 24 hours.
