Panasonic Electronic Components

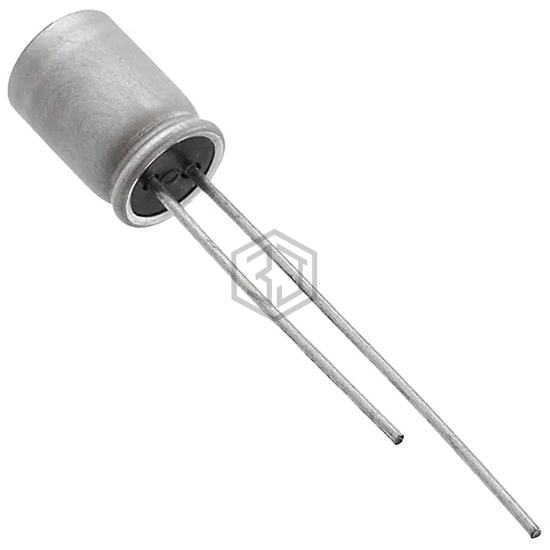

CAP ALUM POLY 330UF 20% 2.5V T/H
2SEPC330MW+TSS is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 330UF 20% 2.5V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 4,418
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
2SEPC330MW+TSS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APSG250ELL331MJB5S | United Chemi-Con | CAP ALUM POLY 330UF 20% 25V T/H | 68% | View |
| 337ULR6R3MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 330UF 20% 6.3V T/H | 68% | View |
| RHT1C331MDN1PH | Nichicon | CAP ALUM POLY 330UF 20% 16V T/H | 62% | View |
| RS80J331MDN1PX | Nichicon | CAP ALUM POLY 330UF 20% 6.3V T/H | 62% | View |
| RF80J331MDN1 | Nichicon | CAP ALUM POLY 330UF 20% 6.3V T/H | 62% | View |
| RS80J331MDN1 | Nichicon | CAP ALUM POLY 330UF 20% 6.3V T/H | 62% | View |
Submit your RFQ for 2SEPC330MW+TSS and get a quote within 24 hours.
