Panasonic Electronic Components
CAP ALUM POLY 1500UF 20% 2.5V TH

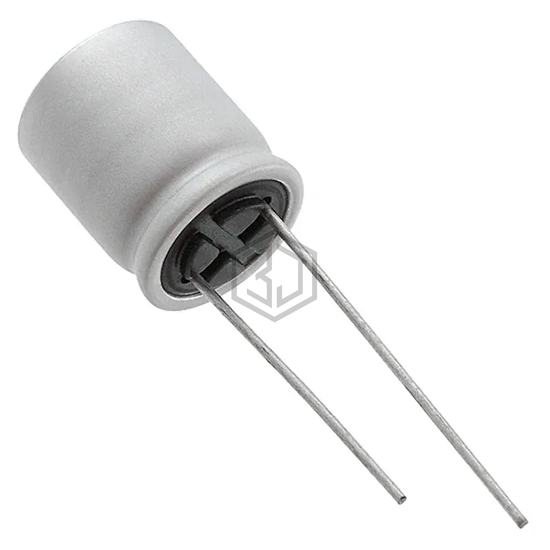

2R5SEP1500M+T is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 1500UF 20% 2.5V TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 7,011
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 12mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 272 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.44 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2R5SEP1500M | Panasonic Electronic Components | CAP ALUM POLY 1500UF 20% 2.5V TH | 100% | View |
| APS-2R5ETD152MJC5S | United Chemi-Con | CAP ALUM POLY 1500UF 2.5V T/H | 100% | View |
| PLF0E152MDO6TD | Nichicon | CAP ALUM POLY 1500UF 2.5V T/H | 96% | View |
| RR70E152MDN1PH | Nichicon | CAP ALUM POLY 1500UF 2.5V TH | 78% | View |
| RS80E122MDN1 | Nichicon | CAP ALUM POLY 1200UF 2.5V TH | 74% | View |
| A750MV158M1CAAE010 | KEMET | CAP ALUM POLY 1500UF 20% 16V T/H | 73% | View |
Submit your RFQ for 2R5SEP1500M+T and get a quote within 24 hours.
