Panasonic Electronic Components

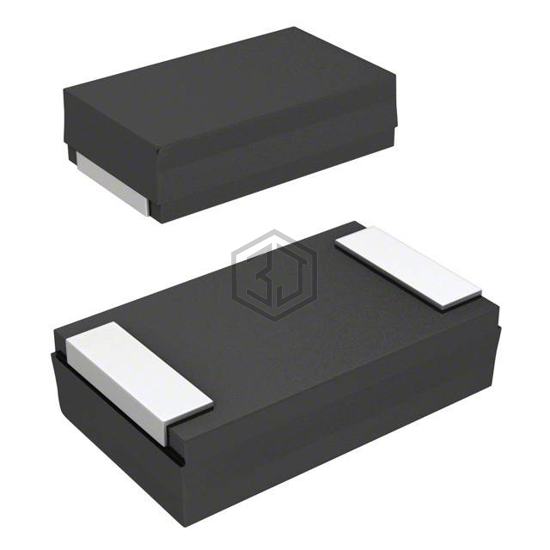

CAP TANT POLY 33UF 25V 2917
25TQC33MYF is a Tantalum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP TANT POLY 33UF 25V 2917. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case 2917 (7343 Metric).
In Stock: 15,305
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 60mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Lead Spacing | - |
| Manufacturer Size Code | D2 |
| Ratings | - |
| Features | General Purpose |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TCJD336M025R0060E | KYOCERA AVX | CAP TANT POLY 33UF 25V 2917 | 100% | View |
| T591D336M025ATE060 | KEMET | CAP TANT POLY 33UF 25V 2917 | 100% | View |
| TCJD336M035R0100 | KYOCERA AVX | CAP TANT POLY 33UF 35V 2917 | 78% | View |
| T525B336M016ATE090 | KEMET | CAP TANT POLY 33UF 16V 1411 | 71% | View |
| TCJB336M006R0070E | KYOCERA AVX | CAP TANT POLY 33UF 6.3V 1411 | 56% | View |
| T520B336M010AHE040 | KEMET | CAP TANT POLY 33UF 10V 1411 | 56% | View |
Submit your RFQ for 25TQC33MYF and get a quote within 24 hours.
