Panasonic Electronic Components

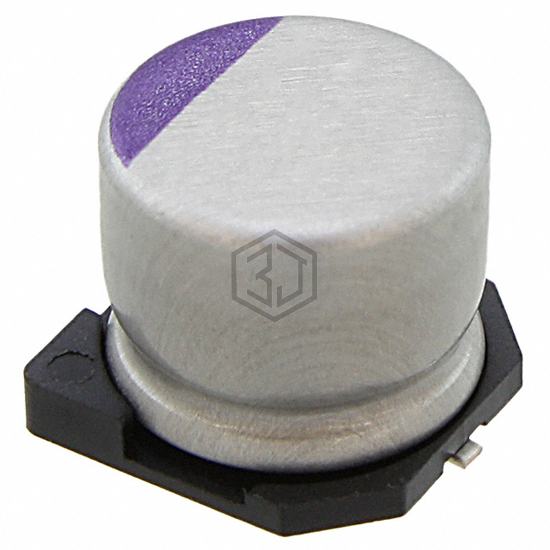

CAP ALUM POLY 82UF 20% 25V SMD
25SVPF82M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 82UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 131
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 875115560003 | Würth Elektronik | CAP ALUM POLY 82UF 20% 25V SMD | 98% | View |
| 875115552002 | Würth Elektronik | CAP ALUM POLY 82UF 20% 25V SMD | 93% | View |
| PCF1C820MCL1GS | Nichicon | CAP ALUM POLY 82UF 20% 16V SMD | 81% | View |
| APXE160ARA820MF80G | United Chemi-Con | CAP ALUM POLY 82UF 20% 16V SMD | 78% | View |
| PVH-16V820MG70E-R2 | Elna America | CAP ALUM POLY 82UF 20% 16V SMD | 78% | View |
| MAL218197002E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 82UF 20% 35V SMD | 76% | View |
Submit your RFQ for 25SVPF82M and get a quote within 24 hours.
