Panasonic Electronic Components

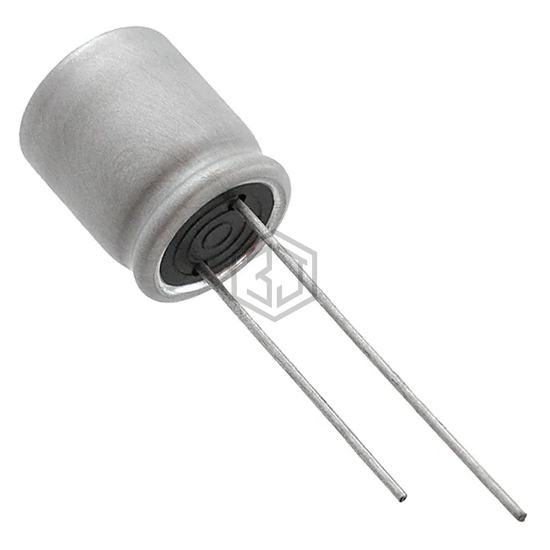

CAP ALUM POLY 330UF 20% 25V T/H
25SEPF330M+T is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 330UF 20% 25V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,772
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 14mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UGV1E331MNN0811U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 98% | View |
| 337AVG025MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 330UF 20% 25V T/H | 92% | View |
| RNU1E331MDNASQ | Nichicon | CAP ALUM POLY 330UF 20% 25V T/H | 83% | View |
| UPR1C331MP26312 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 82% | View |
| APS-160EC3331MJC5S | United Chemi-Con | CAP ALUM POLY 330UF 20% 16V T/H | 81% | View |
| URP1C331MPN1012 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 80% | View |
Submit your RFQ for 25SEPF330M+T and get a quote within 24 hours.
