Panasonic Electronic Components
CAP ALUM POLY 56UF 20% 25V T/H

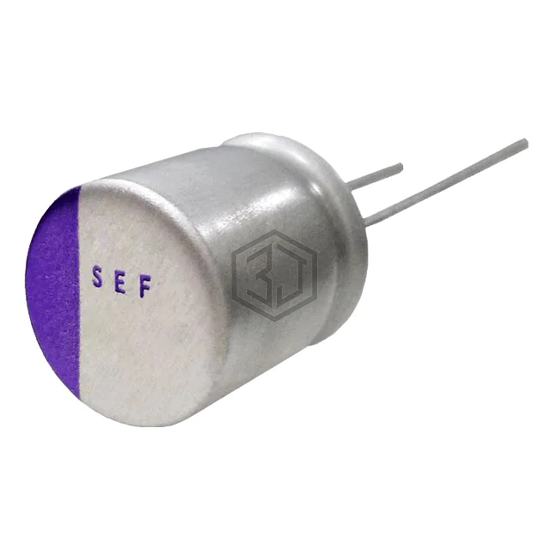

25SEF56M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 56UF 20% 25V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,116
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 44 mA @ 120 Hz |
| Ripple Current @ High Frequency | 880 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35SEK47M | Panasonic Electronic Components | CAP ALUM POLY 47UF 20% 35V T/H | 80% | View |
| 20SEQP68M+T | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 20V T/H | 79% | View |
| 20SEQP68M | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 20V T/H | 79% | View |
| 32SEF68M | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 32V T/H | 69% | View |
| 20SEQP47M | Panasonic Electronic Components | CAP ALUM POLY 47UF 20% 20V T/H | 68% | View |
| 80SXE47M | Panasonic Electronic Components | CAP ALUM POLY 47UF 20% 80V T/H | 67% | View |
