Panasonic Electronic Components

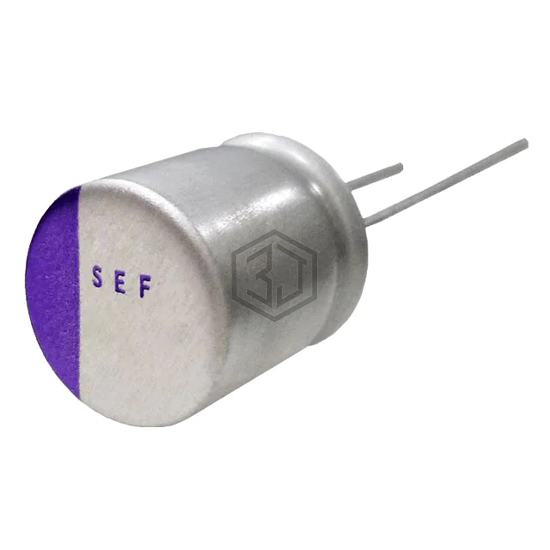

CAP ALUM POLY 330UF 20% 25V T/H
25SEF330M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 330UF 20% 25V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,669
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 14mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 79 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.58 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 20SEF390M | Panasonic Electronic Components | CAP ALUM POLY 390UF 20% 20V T/H | 86% | View |
| URH1E331MP30811U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 81% | View |
| 870135375006 | Würth Elektronik | CAP ALUM POLY 390UF 20% 16V T/H | 71% | View |
| 6SEQP330M+T | Panasonic Electronic Components | CAP ALUM POLY 330UF 20% 6.3V T/H | 65% | View |
| URH1D331MNN6312 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 64% | View |
| 4SEQP330M | Panasonic Electronic Components | CAP ALUM POLY 330UF 20% 4V T/H | 56% | View |
Submit your RFQ for 25SEF330M and get a quote within 24 hours.
