Panasonic Electronic Components

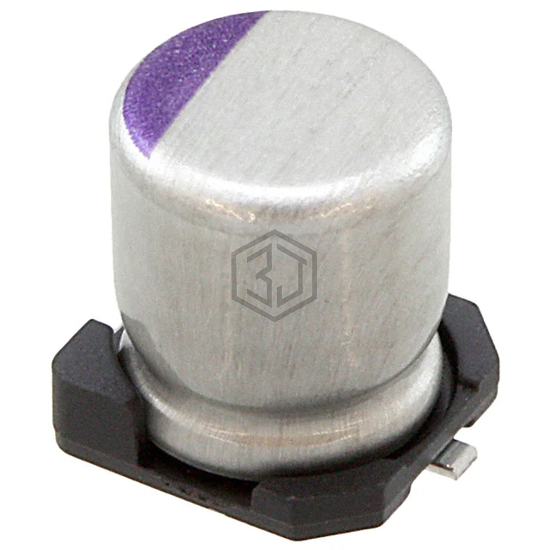

CAP ALUM POLY 22UF 20% 20V SMD
20SVQP22M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 22UF 20% 20V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 20 V, package / case Radial, Can - SMD.
In Stock: 8,142
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 60mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 22.95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 459 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25SVPD22M | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 25V SMD | 82% | View |
| 94SVPD186X0035F8 | Vishay Sprague | CAP ALUM POLY 18UF 20% 35V SMD | 67% | View |
| APXH200ARA220MF60G | United Chemi-Con | CAP ALUM POLY 22UF 20% 20V SMD | 64% | View |
| 35SVPD22M | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 35V SMD | 63% | View |
| 94SVPD226X0035E12 | Vishay Sprague | CAP ALUM POLY 22UF 20% 35V SMD | 63% | View |
| 63SXV18M | Panasonic Electronic Components | CAP ALUM POLY 18UF 20% 63V SMD | 57% | View |
Submit your RFQ for 20SVQP22M and get a quote within 24 hours.
