Panasonic Electronic Components
CAP ALUM POLY 56UF 20% 20V SMD

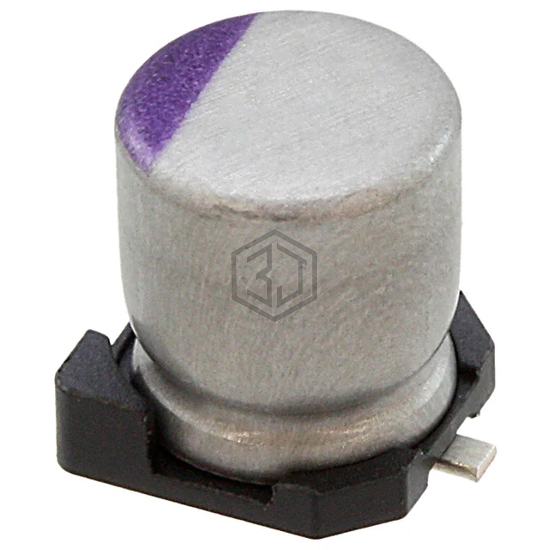

20SVPF56MX is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 56UF 20% 20V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can - SMD.
In Stock: 6,997
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXG200ARA560ME61G | United Chemi-Con | CAP ALUM POLY 56UF 20% 20V SMD | 100% | View |
| MAL218097601E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 56UF 20% 25V SMD | 91% | View |
| PCV1D560MCL2GS | Nichicon | CAP ALUM POLY 56UF 20% 20V SMD | 75% | View |
| MAL218597004E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 56UF 20% 35V SMD | 74% | View |
| MAL218597401E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 56UF 20% 10V SMD | 70% | View |
| APXE100ARA560ME61G | United Chemi-Con | CAP ALUM POLY 56UF 20% 10V SMD | 65% | View |
Submit your RFQ for 20SVPF56MX and get a quote within 24 hours.
