Panasonic Electronic Components

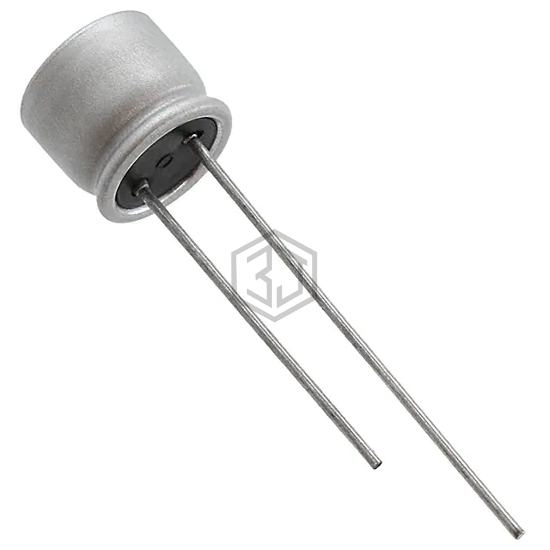

CAP ALUM POLY 180UF 20% 20V T/H
20SEPF180M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 180UF 20% 20V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 39
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APSG200ELL181MF08S | United Chemi-Con | CAP ALUM POLY 180UF 20% 20V T/H | 97% | View |
| PLX1E181MDL1 | Nichicon | CAP ALUM POLY 180UF 20% 25V T/H | 86% | View |
| A759KR187M1VAAE024 | KEMET | CAP ALUM POLY 180UF 20% 35V TH | 80% | View |
| UPE1E181MNN0811U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 79% | View |
| APSG250ELL181MHB5S | United Chemi-Con | CAP ALUM POLY 180UF 20% 25V T/H | 79% | View |
| 16SEPC180M+TSS | Panasonic Electronic Components | CAP ALUM POLY 180UF 20% 16V T/H | 78% | View |
Submit your RFQ for 20SEPF180M and get a quote within 24 hours.
