Panasonic Electronic Components

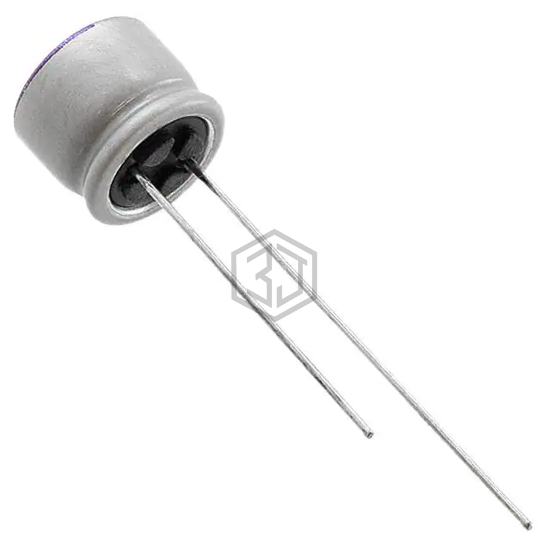

CAP ALUM POLY 33UF 20% 20V T/H
20SEP33M+TSS is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 33UF 20% 20V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 5,009
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 94.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 336ULG020MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 33UF 20% 20V T/H | 100% | View |
| PLF1D390MCL2 | Nichicon | CAP ALUM POLY 39UF 20% 20V T/H | 90% | View |
| RS61E330MCN1 | Nichicon | CAP ALUM POLY 33UF 20% 25V T/H | 77% | View |
| RNS1C330MDS1 | Nichicon | CAP ALUM POLY 33UF 20% 16V T/H | 76% | View |
| A758EK336M1EAAE040 | KEMET | CAP ALUM POLY 33UF 20% 25V T/H | 75% | View |
| 870235675002 | Würth Elektronik | CAP ALUM POLY 33UF 20% 35V T/H | 59% | View |
Submit your RFQ for 20SEP33M+TSS and get a quote within 24 hours.
