Panasonic Electronic Components
CAP ALUM POLY 39UF 20% 16V SMD

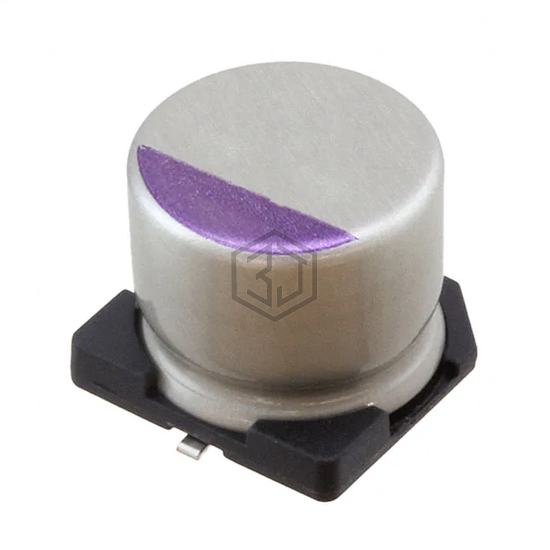

16SVQP39M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 39UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 9,186
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 50mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 81 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.62 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCX1V390MCL1GS | Nichicon | CAP ALUM POLY 39UF 20% 35V SMD | 70% | View |
| PCX1V390MCS1GS | Nichicon | CAP ALUM POLY 39UF 20% 35V SMD | 68% | View |
| A768KE396M1HLAE042 | KEMET | CAP ALUM POLY 39UF 20% 50V SMD | 68% | View |
| PCR1H390MCL1GS | Nichicon | CAP ALUM POLY 39UF 20% 50V SMD | 64% | View |
| A768EB336M1GLAS045 | KEMET | CAP ALUM POLY 33UF 20% 40V SMD | 56% | View |
| MAL218697106E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 33UF 20% 50V SMD | 53% | View |
Submit your RFQ for 16SVQP39M and get a quote within 24 hours.
