Panasonic Electronic Components
CAP ALUM POLY 270UF 20% 16V SMD

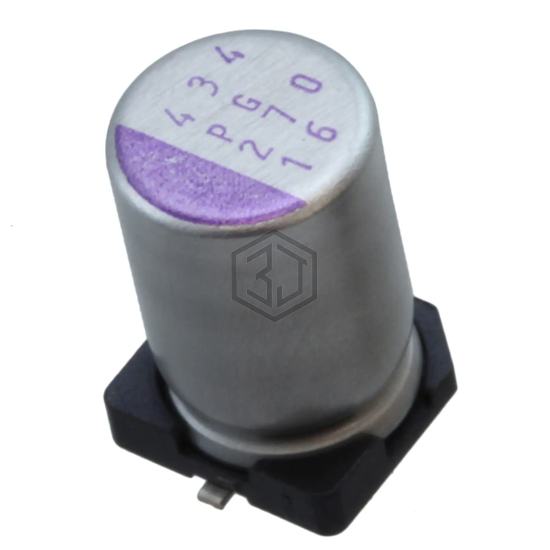

16SVPG270MX is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 270UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 4,744
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 254 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.08 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16SVPG270M | Panasonic Electronic Components | CAP ALUM POLY 270UF 20% 16V SMD | 94% | View |
| PCG1C271MCL1GS | Nichicon | CAP ALUM POLY 270UF 20% 16V SMD | 86% | View |
| 875075561009 | Würth Elektronik | CAP ALUM POLY 270UF 20% 25V SMD | 84% | View |
| 16SVPT270M | Panasonic Electronic Components | CAP ALUM POLY 270UF 20% 16V SMD | 79% | View |
| PCX1C271MCL1GS | Nichicon | CAP ALUM POLY 270UF 20% 16V SMD | 74% | View |
| APXJ100ARA271MF61G | United Chemi-Con | CAP ALUM POLY 270UF 20% 10V SMD | 74% | View |
Submit your RFQ for 16SVPG270MX and get a quote within 24 hours.
