Panasonic Electronic Components

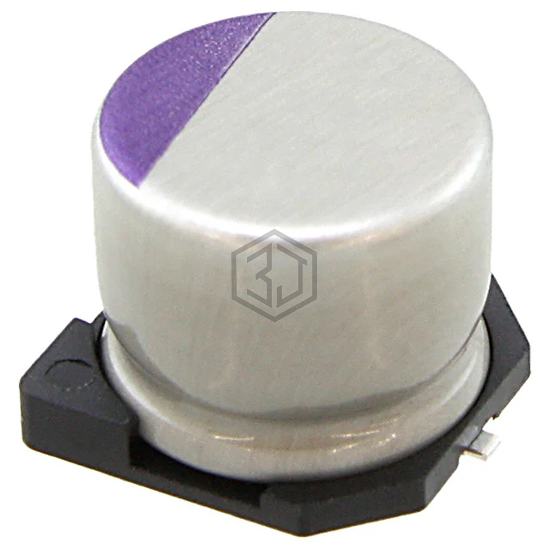

CAP ALUM POLY 56UF 20% 16V SMD
16SVP56M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 56UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 749
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 94.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXN160ARA560ME61G | United Chemi-Con | CAP ALUM POLYMR 56UF 20% 16V SMD | 97% | View |
| MAL218697401E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 56UF 20% 10V SMD | 78% | View |
| APXC100ARA560ME60G | United Chemi-Con | CAP ALUM POLY 56UF 20% 10V SMD | 76% | View |
| APXA100ARA560MF60G | United Chemi-Con | CAP ALUM POLY 56UF 20% 10V SMD | 75% | View |
| PCF1A560MCL4GB | Nichicon | CAP ALUM POLY 56UF 20% 10V SMD | 72% | View |
| APA0606680M010R | KYOCERA AVX | CAP ALUM POLY 68UF 20% 10V SMD | 67% | View |
Submit your RFQ for 16SVP56M and get a quote within 24 hours.
