Panasonic Electronic Components

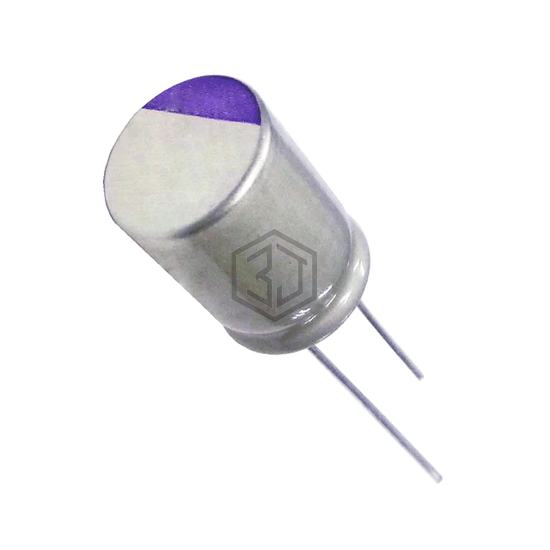

CAP ALUM POLY 270UF 20% 16V T/H
16SEPG270W is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 270UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,772
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 252 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.04 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPE1C271MP26308EU | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 100% | View |
| URP1C271MNN0811U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 100% | View |
| A755KS277M1AAAE015 | KEMET | CAP ALUM POLY 270UF 20% 10V T/H | 84% | View |
| 16SEPF270M | Panasonic Electronic Components | CAP ALUM POLY 270UF 20% 16V T/H | 80% | View |
| PLS1A271MDO1TD | Nichicon | CAP ALUM POLY 270UF 20% 10V T/H | 80% | View |
| APS-100ELL271MHB5S | United Chemi-Con | CAP ALUM POLY 270UF 20% 10V T/H | 76% | View |
Submit your RFQ for 16SEPG270W and get a quote within 24 hours.
