Panasonic Electronic Components

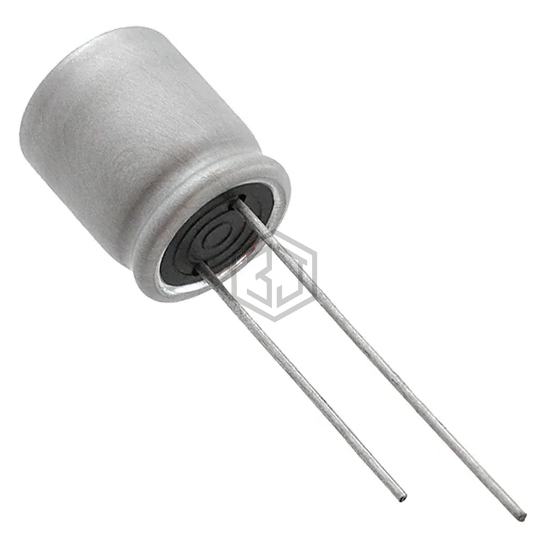

CAP ALUM POLY 1000UF 20% 16V T/H
16SEPF1000M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 1000UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 15,727
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 12mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 270 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UGS1C102MCG0816RU | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 96% | View |
| 108ULR016MGU | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 1000UF 20% 16V T/H | 94% | View |
| UGP1A102MNN1012PRU | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 77% | View |
| 870135174006 | Würth Elektronik | CAP ALUM POLY 1000UF 6.3V T/H | 73% | View |
| 108ULR4R0MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 1000UF 20% 4V T/H | 73% | View |
| APSA2R5ELL102MJB5S | United Chemi-Con | CAP ALUM POLY 1000UF 2.5V T/H | 69% | View |
Submit your RFQ for 16SEPF1000M and get a quote within 24 hours.
