Panasonic Electronic Components
CAP ALUM POLY 120UF 20% 10V SMD

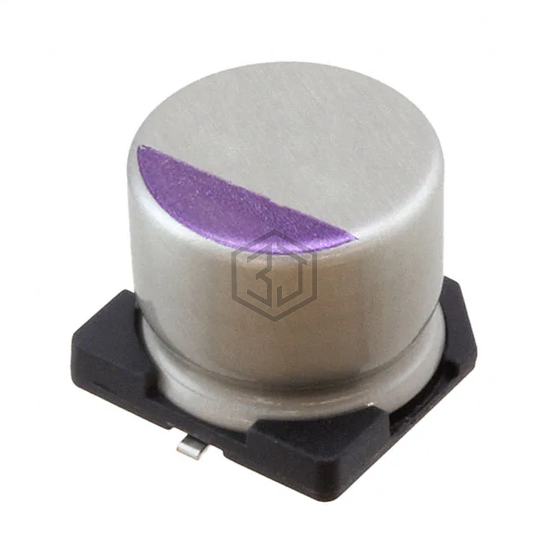

10SVQP120M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 120UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 94
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 128 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.56 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218697503E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 120UF 20% 16V SMD | 81% | View |
| PCM1H121MCL2GS | Nichicon | CAP ALUM POLY 120UF 20% 50V SMD | 78% | View |
| RDS1A121MCNAFEGS | Nichicon | CAP ALUM POLY 120UF 20% 10V SMD | 66% | View |
| PCR1A121MCL1GS | Nichicon | CAP ALUM POLY 120UF 20% 10V SMD | 64% | View |
| RDS1A121MCNAHFGS | Nichicon | CAP ALUM POLY 120UF 20% 10V SMD | 59% | View |
| A768KS107M1HLAE030 | KEMET | CAP ALUM POLY 100UF 20% 50V SMD | 58% | View |
