Panasonic Electronic Components

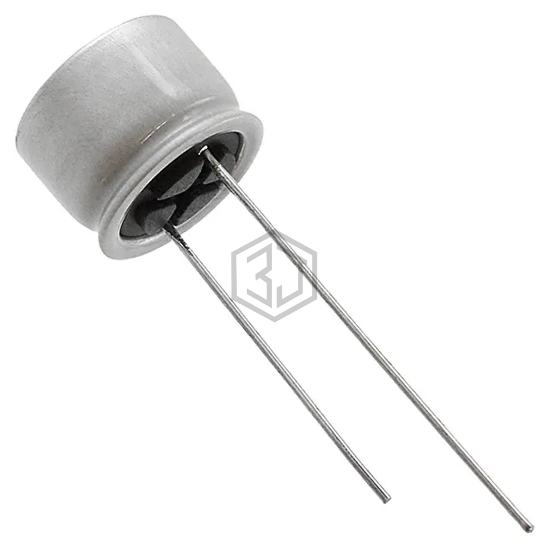

CAP ALUM POLY 270UF 20% 10V T/H
10SEP270M+T is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 270UF 20% 10V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 304
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 185 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLS1A271MDO1 | Nichicon | CAP ALUM POLY 270UF 20% 10V T/H | 91% | View |
| A755KS277M1CAAE015 | KEMET | CAP ALUM POLY 270UF 20% 16V T/H | 81% | View |
| UGP1C271MP26311 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 75% | View |
| 16SEPC270MX+S | Panasonic Electronic Components | CAP ALUM POLY 270UF 20% 16V T/H | 71% | View |
| UPE1C271MCG0808 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 71% | View |
| APSG160ELL271MF08J | United Chemi-Con | CAP ALUM POLY 270UF 20% 16V T/H | 70% | View |
