Panasonic Industrial Automation Sales

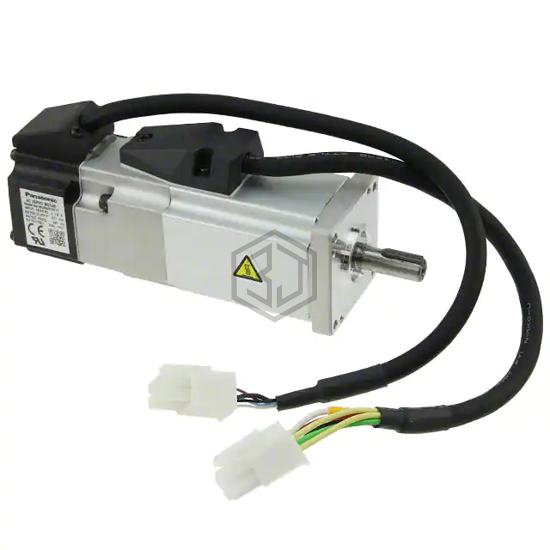

SERVOMOTOR 3000 RPM 100V
MUMA011P1T is a Motors - AC, DC manufactured by Panasonic Industrial Automation Sales. SERVOMOTOR 3000 RPM 100V. Key specifications: operating temperature 0°C ~ 40°C, voltage - rated 100VAC, size / dimension Square - 1.654" x 1.654" (42.00mm x 42.00mm), termination style Cable with Connector.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | AC Motor |
| Function | Servomotor |
| Motor Type | - |
| Voltage - Rated | 100VAC |
| RPM | 3000 RPM |
| Torque - Rated (oz-in / mNm) | 45.32 / 320 |
| Power - Rated | 100W |
| Encoder Type | Incremental |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Mounting Hole Spacing | 1.890" (48.00mm) |
| Termination Style | Cable with Connector |
| Features | Brake, Key |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 134.5 / 950 |
| Operating Temperature | 0°C ~ 40°C |
Submit your RFQ for MUMA011P1T and get a quote within 24 hours.
