Panasonic Industrial Automation Sales

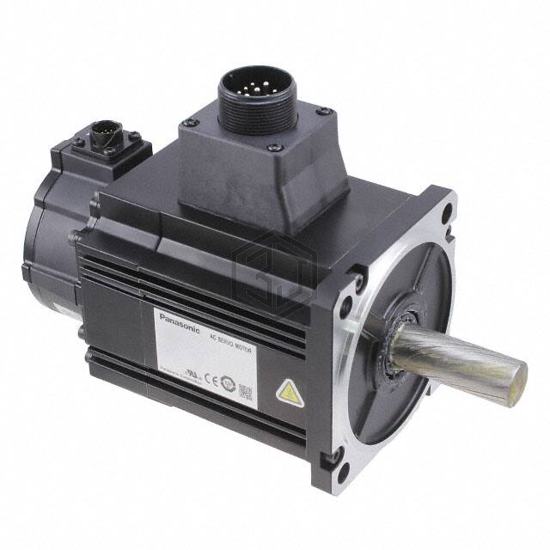

SERVOMOTOR 3000 RPM 200V
MSME102G1D is a Motors - AC, DC manufactured by Panasonic Industrial Automation Sales. SERVOMOTOR 3000 RPM 200V. Key specifications: operating temperature 0°C ~ 40°C, voltage - rated 200VAC, size / dimension Square - 3.937" x 3.937" (100.00mm x 100.00mm), termination style Connector.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | AC Motor |
| Function | Servomotor |
| Motor Type | - |
| Voltage - Rated | 200VAC |
| RPM | 3000 RPM |
| Torque - Rated (oz-in / mNm) | 450.3 / 3180 |
| Power - Rated | 1kW |
| Encoder Type | Incremental |
| Size / Dimension | Square - 3.937" x 3.937" (100.00mm x 100.00mm) |
| Diameter - Shaft | 0.748" (19.00mm) |
| Length - Shaft and Bearing | 2.165" (55.00mm) |
| Mounting Hole Spacing | 4.528" (115.00mm) |
| Termination Style | Connector |
| Features | Brake, Oil Seal |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 1352 / 9550 |
| Operating Temperature | 0°C ~ 40°C |
Submit your RFQ for MSME102G1D and get a quote within 24 hours.
