Panasonic Industrial Automation Sales

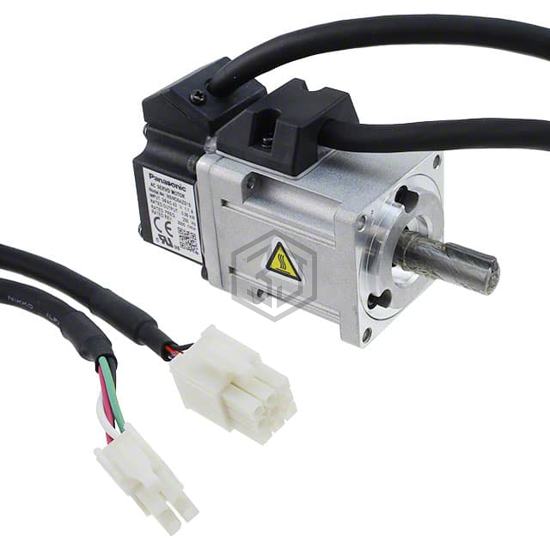

SERVOMOTOR 3000 RPM 100/200V
MSMD5AZS1S is a Motors - AC, DC manufactured by Panasonic Industrial Automation Sales. SERVOMOTOR 3000 RPM 100/200V. Key specifications: operating temperature 0°C ~ 40°C, voltage - rated 100, 200VAC, size / dimension Square - 1.496" x 1.496" (38.00mm x 38.00mm), termination style Wire Leads.
In Stock: 64
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | AC Motor |
| Function | Servomotor |
| Motor Type | - |
| Voltage - Rated | 100, 200VAC |
| RPM | 3000 RPM |
| Torque - Rated (oz-in / mNm) | 22.7 / 160 |
| Power - Rated | 50W |
| Encoder Type | Absolute |
| Size / Dimension | Square - 1.496" x 1.496" (38.00mm x 38.00mm) |
| Diameter - Shaft | 0.315" (8.00mm) |
| Length - Shaft and Bearing | 0.984" (25.00mm) |
| Mounting Hole Spacing | 1.772" (45.00mm) |
| Termination Style | Wire Leads |
| Features | Key |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 67.97 / 480 |
| Operating Temperature | 0°C ~ 40°C |
Submit your RFQ for MSMD5AZS1S and get a quote within 24 hours.
