Panasonic Industrial Automation Sales

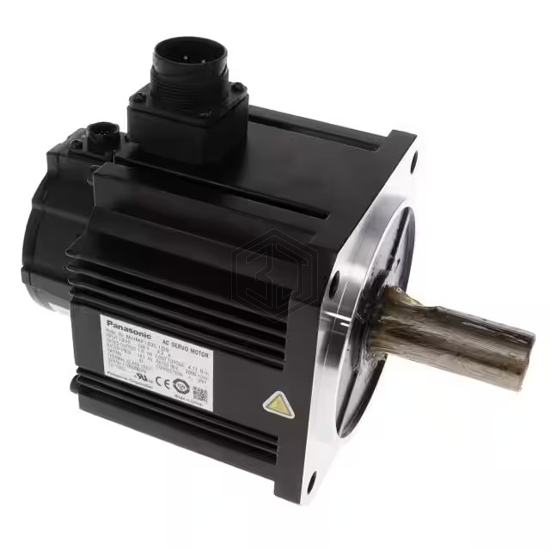

SERVOMOTOR 2000 RPM 200V
MHMF102L1G5 is a Motors - AC, DC manufactured by Panasonic Industrial Automation Sales. SERVOMOTOR 2000 RPM 200V. Key specifications: operating temperature 0°C ~ 55°C, voltage - rated 200VAC, size / dimension Square - 5.118" x 5.118" (130.00mm x 130.00mm), termination style Cable with Connector.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | AC Motor |
| Function | Servomotor |
| Motor Type | - |
| Voltage - Rated | 200VAC |
| RPM | 2000 RPM |
| Torque - Rated (oz-in / mNm) | 675.5 / 4770 |
| Power - Rated | 1kW |
| Encoder Type | Absolute |
| Size / Dimension | Square - 5.118" x 5.118" (130.00mm x 130.00mm) |
| Diameter - Shaft | 0.866" (22.00mm) |
| Length - Shaft and Bearing | 2.760" (70.00mm) |
| Mounting Hole Spacing | 5.709" (145.00mm) |
| Termination Style | Cable with Connector |
| Features | Key |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 2025 / 14300 |
| Operating Temperature | 0°C ~ 55°C |
Submit your RFQ for MHMF102L1G5 and get a quote within 24 hours.
