Panasonic Industrial Automation Sales

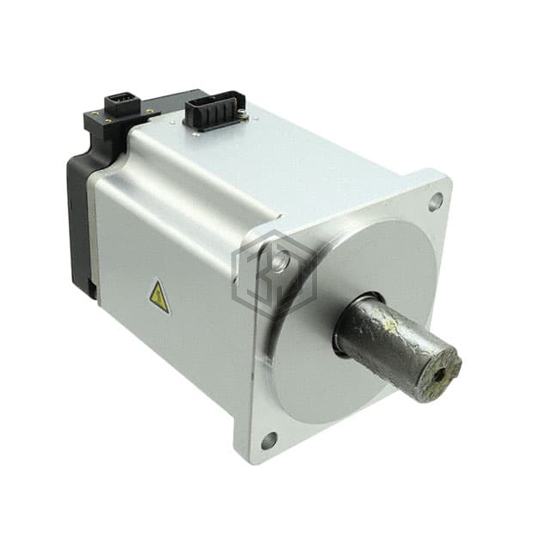

MOTOR AC SERVO 200V HI 1KW IP67
MHMF092L1S1 is a Motors - AC, DC manufactured by Panasonic Industrial Automation Sales. MOTOR AC SERVO 200V HI 1KW IP67. Key specifications: operating temperature 0°C ~ 55°C, voltage - rated 200VAC, size / dimension Square - 3.150" x 3.150" (80.00mm x 80.00mm), termination style Connector.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | AC Motor |
| Function | Servomotor |
| Motor Type | - |
| Voltage - Rated | 200VAC |
| RPM | 3000 RPM |
| Torque - Rated (oz-in / mNm) | 450.3 / 3180 |
| Power - Rated | 1kW |
| Encoder Type | Absolute |
| Size / Dimension | Square - 3.150" x 3.150" (80.00mm x 80.00mm) |
| Diameter - Shaft | 0.748" (19.00mm) |
| Length - Shaft and Bearing | 1.378" (35.00mm) |
| Mounting Hole Spacing | 3.543" (90.00mm) |
| Termination Style | Connector |
| Features | Key |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 1572 / 11100 |
| Operating Temperature | 0°C ~ 55°C |
Submit your RFQ for MHMF092L1S1 and get a quote within 24 hours.
