Panasonic Industrial Automation Sales

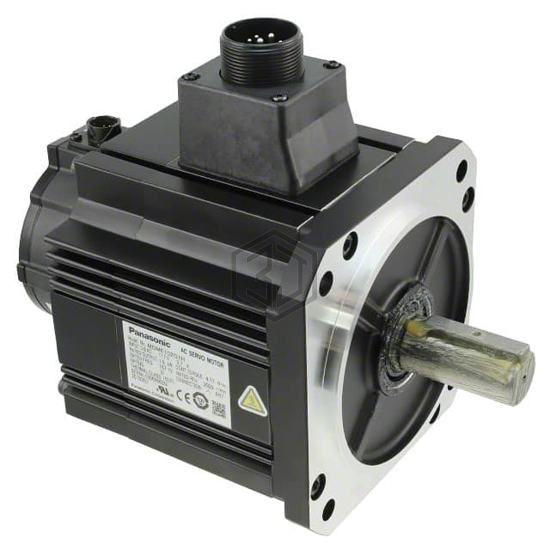

SERVOMOTOR 2000 RPM 400V
MDME104G1H is a Motors - AC, DC manufactured by Panasonic Industrial Automation Sales. SERVOMOTOR 2000 RPM 400V. Key specifications: operating temperature 0°C ~ 40°C, voltage - rated 400VAC, size / dimension Square - 5.118" x 5.118" (130.00mm x 130.00mm), termination style Connector.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | AC Motor |
| Function | Servomotor |
| Motor Type | - |
| Voltage - Rated | 400VAC |
| RPM | 2000 RPM |
| Torque - Rated (oz-in / mNm) | 675.5 / 4770 |
| Power - Rated | 1kW |
| Encoder Type | Incremental |
| Size / Dimension | Square - 5.118" x 5.118" (130.00mm x 130.00mm) |
| Diameter - Shaft | 0.866" (22.00mm) |
| Length - Shaft and Bearing | 2.165" (55.00mm) |
| Mounting Hole Spacing | 5.709" (145.00mm) |
| Termination Style | Connector |
| Features | Brake, Key, Oil Seal |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | 2025 / 14300 |
| Operating Temperature | 0°C ~ 40°C |
Submit your RFQ for MDME104G1H and get a quote within 24 hours.
