Panasonic Industrial Automation Sales
STANDARD MTR 1650 RPM 200/220V

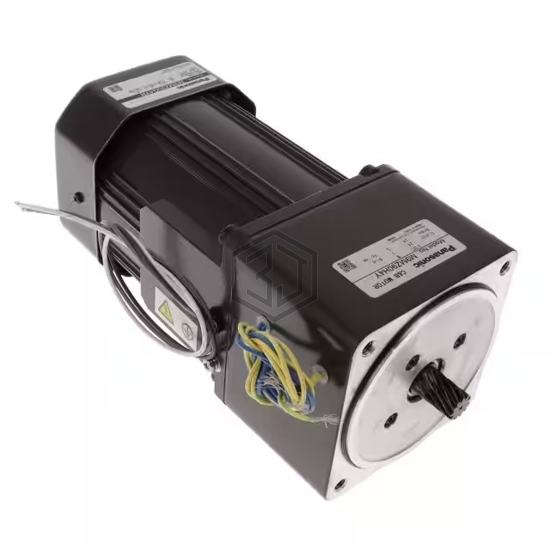

M9MZ90H4Y is a Motors - AC, DC manufactured by Panasonic Industrial Automation Sales. STANDARD MTR 1650 RPM 200/220V. Key specifications: operating temperature -10°C ~ 40°C, voltage - rated 200, 220VAC, size / dimension Square - 3.543" x 3.543" (90.00mm x 90.00mm), termination style Wire Leads.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | AC Motor |
| Function | Standard |
| Motor Type | - |
| Voltage - Rated | 200, 220VAC |
| RPM | 1650 RPM |
| Torque - Rated (oz-in / mNm) | 73.64 / 520 |
| Power - Rated | 90W |
| Encoder Type | - |
| Size / Dimension | Square - 3.543" x 3.543" (90.00mm x 90.00mm) |
| Diameter - Shaft | - |
| Length - Shaft and Bearing | 0.748" (19.00mm) |
| Mounting Hole Spacing | 4.094" (104.00mm) |
| Termination Style | Wire Leads |
| Features | - |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | - |
| Operating Temperature | -10°C ~ 40°C |
Submit your RFQ for M9MZ90H4Y and get a quote within 24 hours.
