Panasonic Industrial Automation Sales

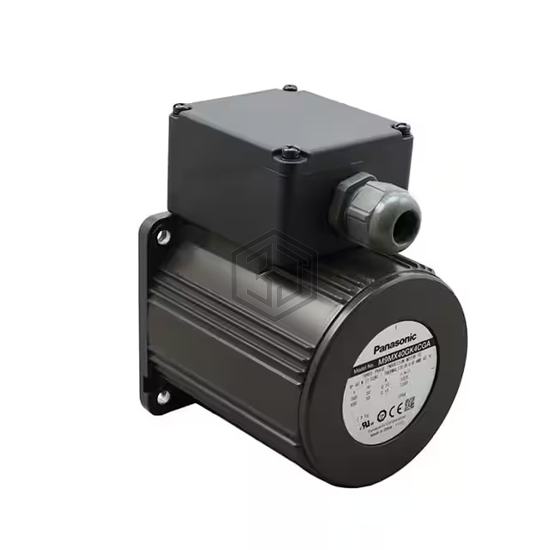

MOTOR INDUCT 90MM 100V 40W
M9MX40GK4CGA is a Motors - AC, DC manufactured by Panasonic Industrial Automation Sales. MOTOR INDUCT 90MM 100V 40W. Key specifications: operating temperature -10°C ~ 40°C, voltage - rated 380, 400VAC, size / dimension Square - 3.540" x 3.540" (90.00mm x 90.00mm), termination style Connector.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | AC Motor |
| Function | Standard |
| Motor Type | - |
| Voltage - Rated | 380, 400VAC |
| RPM | 1350 RPM |
| Torque - Rated (oz-in / mNm) | 39.65 / 280 |
| Power - Rated | 40W |
| Encoder Type | - |
| Size / Dimension | Square - 3.540" x 3.540" (90.00mm x 90.00mm) |
| Diameter - Shaft | - |
| Length - Shaft and Bearing | 0.504" (12.80mm) |
| Mounting Hole Spacing | 4.094" (104.00mm) |
| Termination Style | Connector |
| Features | - |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | - |
| Operating Temperature | -10°C ~ 40°C |
Submit your RFQ for M9MX40GK4CGA and get a quote within 24 hours.
