Panasonic Industrial Automation Sales

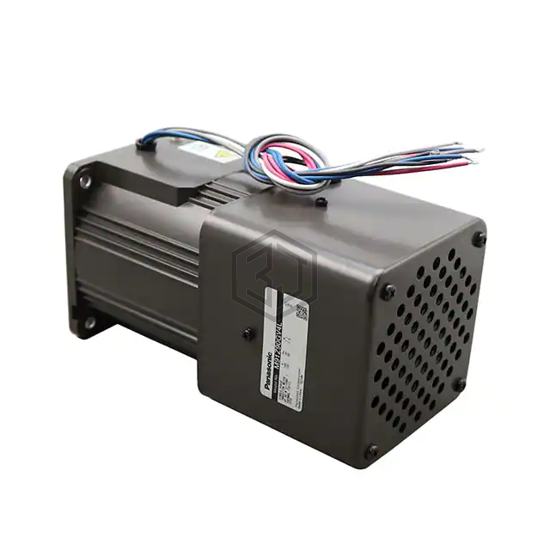

MOTOR INDUCT 90MM 100V 90W
M91Z90GV4L is a Motors - AC, DC manufactured by Panasonic Industrial Automation Sales. MOTOR INDUCT 90MM 100V 90W. Key specifications: operating temperature -10°C ~ 40°C, voltage - rated 100VAC, size / dimension Square - 3.540" x 3.540" (90.00mm x 90.00mm), termination style Wire Leads.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | AC Motor |
| Function | Standard |
| Motor Type | - |
| Voltage - Rated | 100VAC |
| RPM | 1200 RPM |
| Torque - Rated (oz-in / mNm) | 76.47 / 540 |
| Power - Rated | 90W |
| Encoder Type | - |
| Size / Dimension | Square - 3.540" x 3.540" (90.00mm x 90.00mm) |
| Diameter - Shaft | - |
| Length - Shaft and Bearing | 0.807" (20.50mm) |
| Mounting Hole Spacing | 4.094" (104.00mm) |
| Termination Style | Wire Leads |
| Features | - |
| Gear Reduction Ratio | - |
| Torque - Max Momentary (oz-in / mNm) | - |
| Operating Temperature | -10°C ~ 40°C |
Submit your RFQ for M91Z90GV4L and get a quote within 24 hours.
