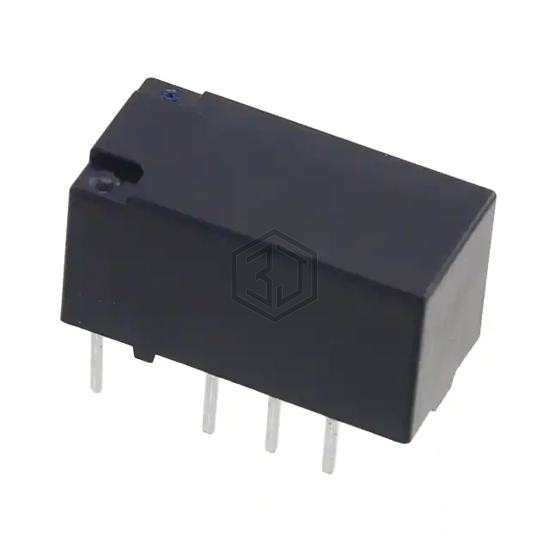

RELAY GEN PURPOS DPDT 10MA 12VDC
TXD2-12V-4 is a Signal Relays, Up to 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOS DPDT 10MA 12VDC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, contact material Silver Palladium (AgPd), Gold (Au), termination style PC Pin.
In Stock: 6,586
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 mA |
| Switching Voltage | 10VDC - Max |
| Coil Current | 23.3 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Relay Type | General Purpose |
Submit your RFQ for TXD2-12V-4 and get a quote within 24 hours.
