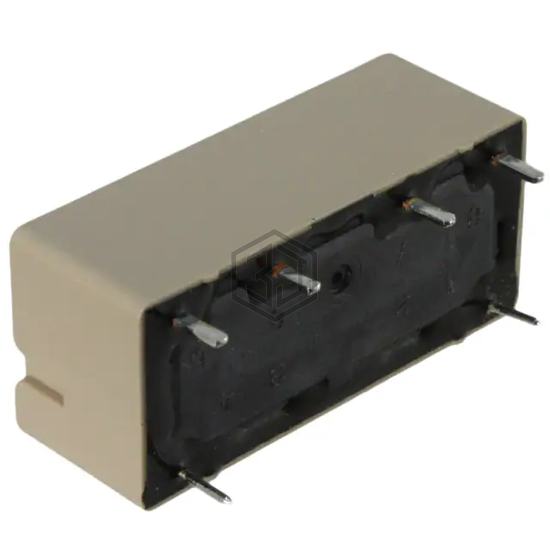

RELAY GEN PURPOSE DPST 8A 24V
ST2-DC24V-F is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE DPST 8A 24V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 60°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin.
In Stock: 3,159
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 380VAC, 250VDC - Max |
| Coil Current | 10 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 60°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for ST2-DC24V-F and get a quote within 24 hours.
