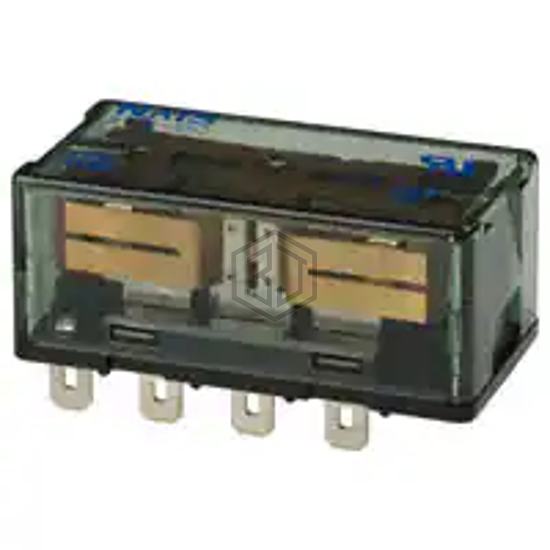

RELAY GEN PURPOSE DPDT 15A 5V
SP2-DC5V is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE DPDT 15A 5V. Key specifications: mounting type Socketable, operating temperature -50°C ~ 60°C, contact material Silver Tin Oxide (AgSnO), termination style Plug In, Quick Connect - 0.187" (4.7mm).
In Stock: 284
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 15 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Coil Current | 60.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 30 ms |
| Release Time | 20 ms |
| Operating Temperature | -50°C ~ 60°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for SP2-DC5V and get a quote within 24 hours.
