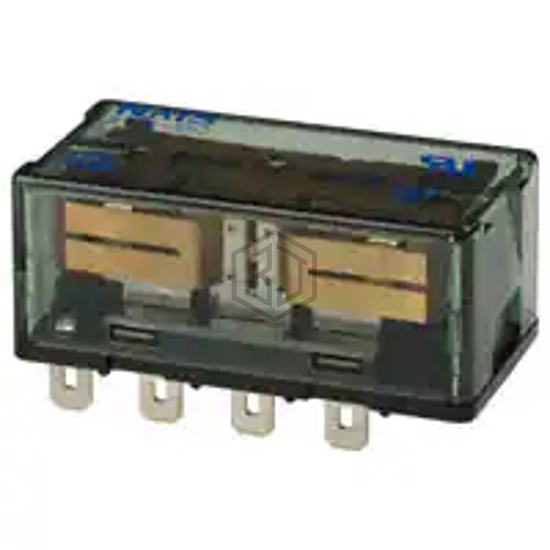

RELAY GEN PURPOSE DPDT 15A 48V
SP2-DC48V is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE DPDT 15A 48V. Key specifications: mounting type Socketable, operating temperature -50°C ~ 60°C, contact material Silver Tin Oxide (AgSnO), termination style Plug In, Quick Connect - 0.187" (4.7mm).
In Stock: 44
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 48VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 15 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Coil Current | 6.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 33.6 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 30 ms |
| Release Time | 20 ms |
| Operating Temperature | -50°C ~ 60°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
