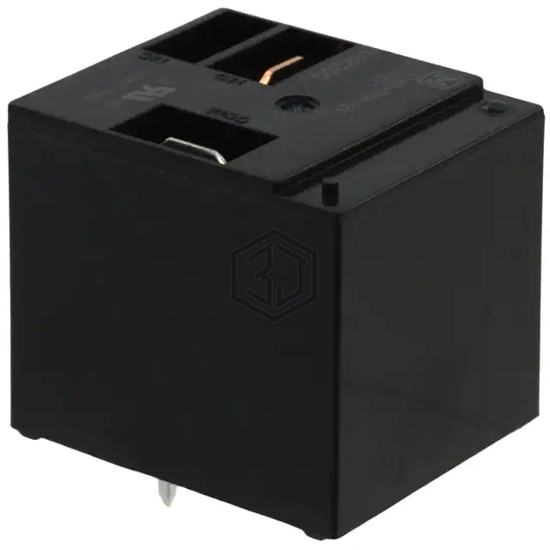

RELAY GEN PURPOSE SPST 20A 18V
JTV1S-TMP-18V is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE SPST 20A 18V. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin, Quick Connect - 0.250" (6.3mm).
In Stock: 36
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Mounting Type | Through Hole |
| Coil Voltage | 18VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 277VAC - Max |
| Coil Current | 55.6 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 13.5 VDC |
| Must Release Voltage | 1.8 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for JTV1S-TMP-18V and get a quote within 24 hours.
