RELAY GEN PURPOSE SPDT 10A 18V

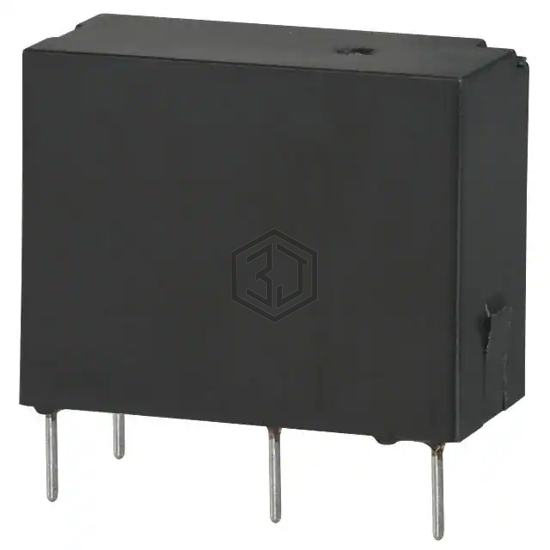

JS1-18V-F is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE SPDT 10A 18V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 70°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin.
In Stock: 55
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Mounting Type | Through Hole |
| Coil Voltage | 18VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 100VDC - Max |
| Coil Current | 20 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 12.6 VDC |
| Must Release Voltage | 1.8 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for JS1-18V-F and get a quote within 24 hours.
