RELAY GEN PURPOSE DPST 25A 240V

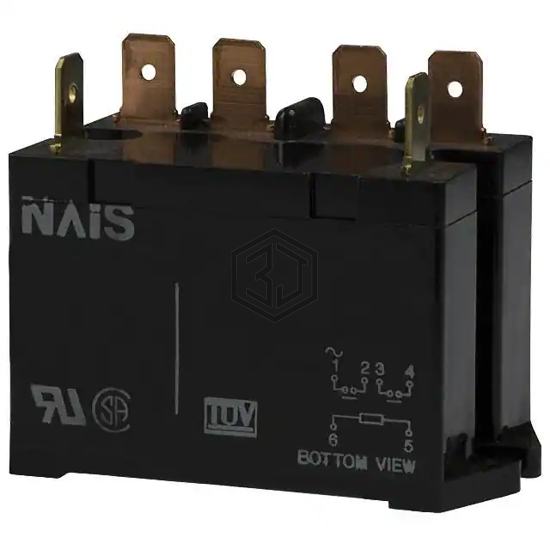

HE2AN-Q-AC240V is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE DPST 25A 240V. Key specifications: mounting type Chassis Mount, operating temperature -50°C ~ 55°C, contact material Silver Tin Oxide (AgSnO), termination style Quick Connect - 0.250" (6.3mm).
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 240VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 277VAC, 30VDC - Max |
| Coil Current | 9.1 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 168 VAC |
| Must Release Voltage | 36 VAC |
| Operate Time | 30 ms |
| Release Time | 30 ms |
| Operating Temperature | -50°C ~ 55°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for HE2AN-Q-AC240V and get a quote within 24 hours.
