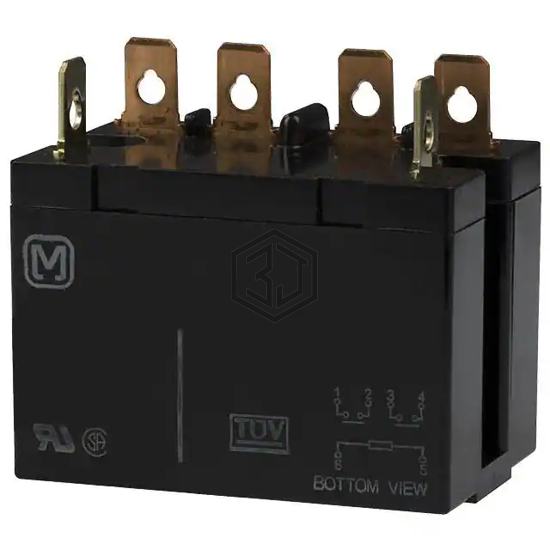

HE2AN-DC48V - Panasonic Electric Works - Power Relays, Over 2 Amps

HE2AN-DC48V

Panasonic Electric Works

RELAY GEN PURPOSE DPST 25A 48V

HE2AN-DC48V is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE DPST 25A 48V. Key specifications: mounting type Chassis Mount, operating temperature -50°C ~ 55°C, contact material Silver Tin Oxide (AgSnO), termination style Plug In, Quick Connect - 0.250" (6.3mm).

In Stock: 23

Product Attributes

AttributeValue
Product StatusActive
Mounting TypeChassis Mount
Coil Voltage48VDC
Contact FormDPST-NO (2 Form A)
Contact Rating (Current)25 A
Switching Voltage277VAC, 30VDC - Max
Coil Current40 mA
Coil TypeNon Latching
Features-
Termination StylePlug In, Quick Connect - 0.250" (6.3mm)
Seal Rating-
Coil Insulation-
Must Operate Voltage33.6 VDC
Must Release Voltage4.8 VDC
Operate Time30 ms
Release Time10 ms
Operating Temperature-50°C ~ 55°C
Contact MaterialSilver Tin Oxide (AgSnO)
Relay TypeGeneral Purpose

Frequently Asked Questions

HE2AN-DC48V is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE DPST 25A 48V

The mounting type of HE2AN-DC48V is Chassis Mount.

The operating temperature range of HE2AN-DC48V is -50°C ~ 55°C.

The material of HE2AN-DC48V is Silver Tin Oxide (AgSnO).

The coil voltage of HE2AN-DC48V is 48VDC.
