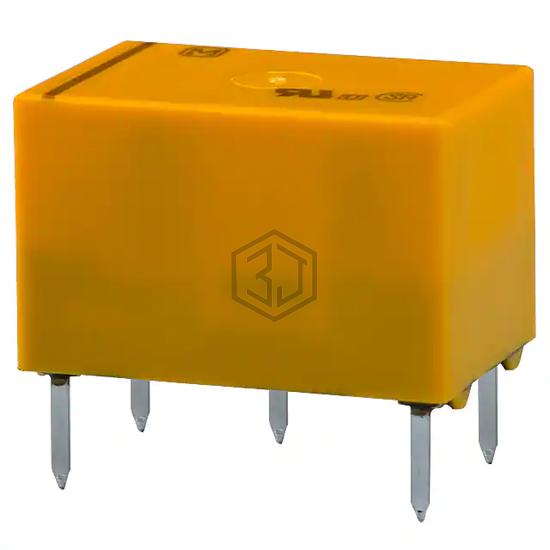

RELAY GEN PURPOSE SPDT 2A 48VDC
DS1E-S-DC48V is a Signal Relays, Up to 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE SPDT 2A 48VDC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 70°C, contact material Silver (Ag), Gold (Au), termination style PC Pin.
In Stock: 89
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 48VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Coil Current | 4.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 38.4 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Relay Type | General Purpose |
Submit your RFQ for DS1E-S-DC48V and get a quote within 24 hours.
