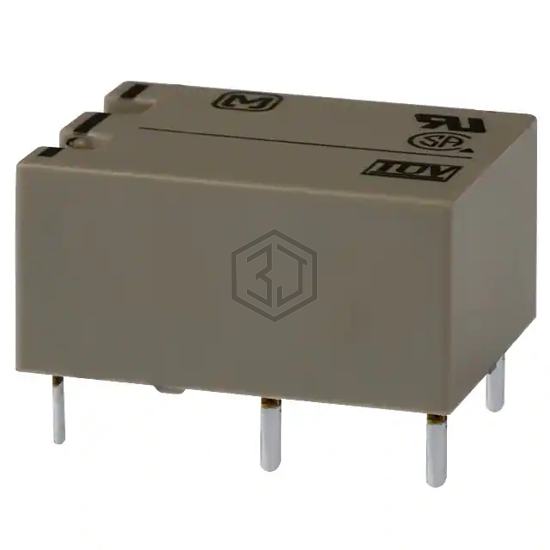

RELAY GEN PURPOSE DPST 8A 24V
DK1A1B-L2-24V is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE DPST 8A 24V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 65°C, contact material Silver Nickel (AgNi), termination style PC Pin.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | DPST-NO/NC (1 Form A, 1 Form B) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 250VAC, 125VDC - Max |
| Coil Current | 8.3 mA |
| Coil Type | Latching, Dual Coil |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | - |
| Operate Time | 10 ms |
| Release Time | 8 ms |
| Operating Temperature | -40°C ~ 65°C |
| Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose |
