OPTOISO 3.75KV PUSH PULL

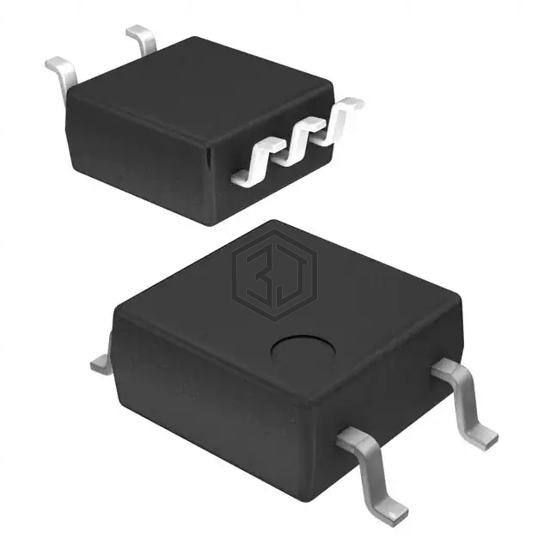

APS1551SX is a Optoisolators - Logic Output manufactured by Panasonic Electric Works. OPTOISO 3.75KV PUSH PULL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 4.5V ~ 5.5V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.
In Stock: 341
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 10 mA |
| Data Rate | 50Mbps |
| Propagation Delay tpLH / tpHL (Max) | 30ns, 30ns |
| Rise / Fall Time (Typ) | 4ns, 5ns |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Supplier Device Package | 6-SO, 5 Lead |
Submit your RFQ for APS1551SX and get a quote within 24 hours.
