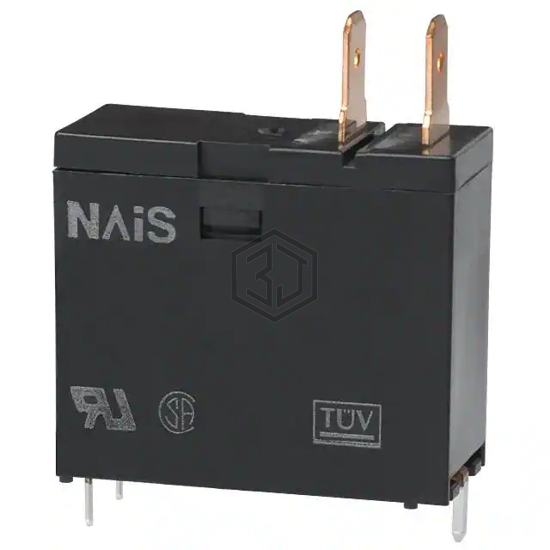

RELAY GEN PURPOSE SPST 16A 9V
ALE12B09 is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE SPST 16A 9V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin, Quick Connect - 0.187" (4.7mm).
In Stock: 97
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Mounting Type | Through Hole |
| Coil Voltage | 9VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 277VAC - Max |
| Coil Current | 44.4 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 6.75 VDC |
| Must Release Voltage | 0.45 VDC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for ALE12B09 and get a quote within 24 hours.
