RELAY GEN PURPOSE DPST 35A 24V

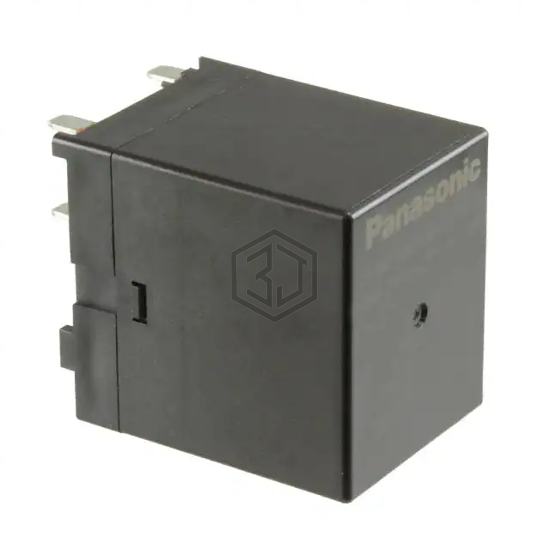

AHES3192 is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE DPST 35A 24V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 55°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin.
In Stock: 298
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 35 A |
| Switching Voltage | 277VAC - Nom |
| Coil Current | 78 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 30 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for AHES3192 and get a quote within 24 hours.
