RELAY TELECOM DPDT 2A 12VDC

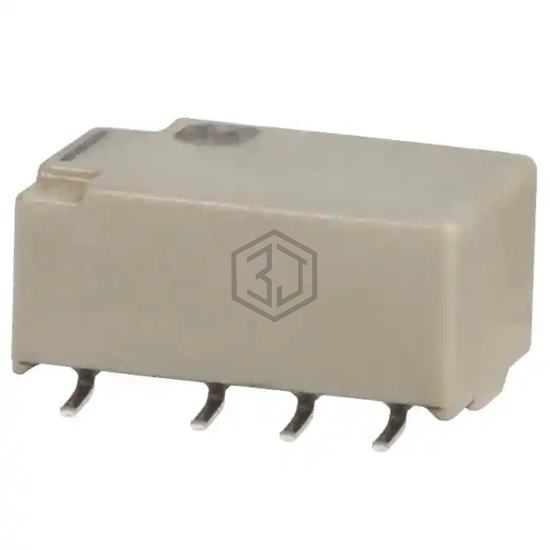

AGQ200S12Z is a Signal Relays, Up to 2 Amps manufactured by Panasonic Electric Works. RELAY TELECOM DPDT 2A 12VDC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, contact material Silver Palladium (AgPd), Gold (Au), termination style Gull Wing.
In Stock: 12,734
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Surface Mount |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 125VAC, 110VDC - Max |
| Coil Current | 11.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Gull Wing |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Relay Type | Telecom |
