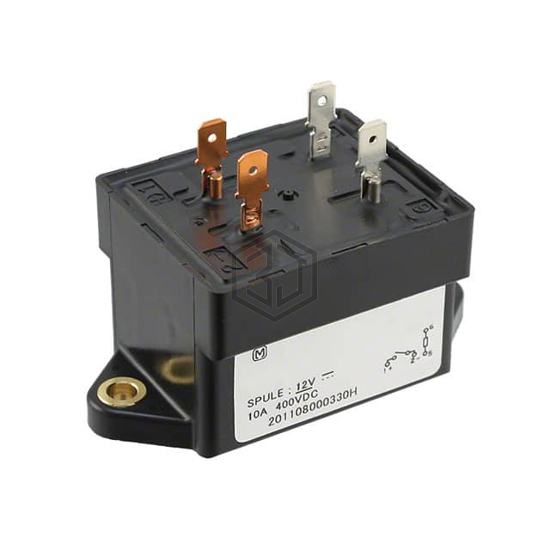

RELAY GEN PURPOSE SPST 20A 12V
AEP52012 is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE SPST 20A 12V. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 80°C, termination style Quick Connect - 0.187" (4.7mm), coil voltage 12VDC.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 277VAC, 400VDC - Nom |
| Coil Current | 327 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 50 ms |
| Release Time | 30 ms |
| Operating Temperature | -40°C ~ 80°C |
| Contact Material | - |
| Relay Type | General Purpose |
Submit your RFQ for AEP52012 and get a quote within 24 hours.
