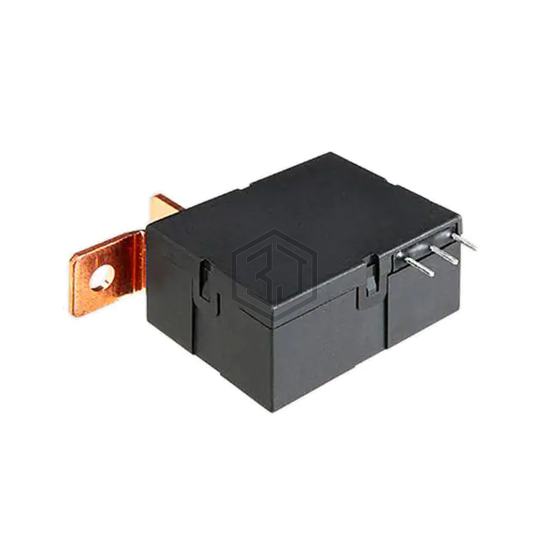

RELAY GEN PURPOSE SPST 90A 12V
ADZS22112 is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE SPST 90A 12V. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, contact material Silver Tin Oxide (AgSnO), termination style Screw Terminal.
In Stock: 74
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 90 A |
| Switching Voltage | 276VAC - Max |
| Coil Current | 250 mA |
| Coil Type | Latching, Dual Coil |
| Features | - |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | - |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for ADZS22112 and get a quote within 24 hours.
