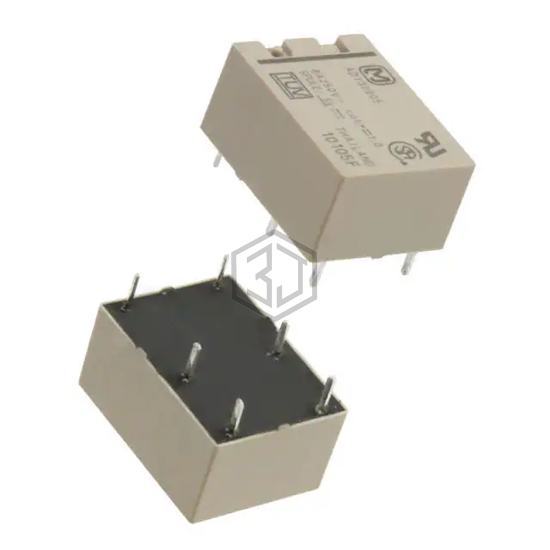

RELAY GEN PURPOSE DPST 8A 3V
ADY30003 is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE DPST 8A 3V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 70°C, contact material Silver Tin Oxide (AgSnO), Gold (Au), termination style PC Pin.
In Stock: 7,005
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 3VDC |
| Contact Form | DPST-NO/NC (1 Form A, 1 Form B) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 250VAC, 125VDC - Max |
| Coil Current | 66.6 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 2.1 VDC |
| Must Release Voltage | - |
| Operate Time | 10 ms |
| Release Time | 8 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO), Gold (Au) |
| Relay Type | General Purpose |
